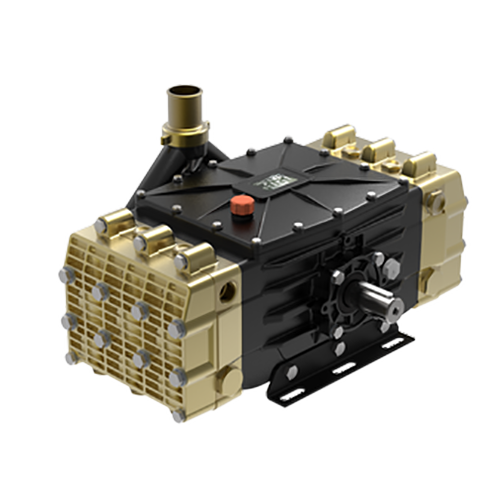

UDOR GAMMA-IL 200 TS 1C High Pressure Washer Pump 42.2HP 80Bar 215L/Min 600Rpm
Description:
The Industrial High-Volume Fluid Moving Master.
The UDOR GAMMA-IL 200 TS 1C is a heavy-duty, Italian-made industrial pump designed for applications where moving massive volumes of liquid is the primary goal. Forget high pressure for stripping; this pump is about unparalleled flow rate.
Best Applications (Industrial Scale):
High-Volume Spraying: Perfect for large-scale agricultural spraying rigs or industrial coating systems needing extreme coverage rates.
Sewer Jetting & Pipeline Flushing: Provides the immense volume required to effectively flush and clean large-diameter pipes and main sewer lines.
Industrial Fluid Transfer: Ideal for rapidly moving water or other compatible fluids in processing plants or cooling systems.
High-Capacity Dust Suppression: Delivers the huge water volume needed to cover vast areas quickly in mining or construction.
Reverse Osmosis Feed Systems: Suitable for high-flow feed requirements in large water treatment plants.
Key Features & Industrial Benefits:
Colossal Flow Rate: The star of the show is the incredible 215 L/min flow rate at 80 Bar (1160 psi). This moves liquid at an astonishing pace, perfect for high-volume delivery.
Built for 24/7 Operation: Features 6 solid ceramic plungers and operates at a super-low 600 RPM. This design ensures exceptionally smooth flow and is built for continuous, heavy-duty industrial use with maximum longevity.
Robust Industrial Construction: Boasts a forged brass head, hardened steel crankshaft, oversize bearings, and an aluminum die-cast crankcase with cataphoresis coating for superior durability and corrosion resistance. Includes a double sealing system for enhanced reliability.
Requires Serious Industrial Power: This is a high-demand pump needing a substantial 42.2 HP (31.5 kW) motor or engine connected via the heavy-duty 35mm male shaft.
Italian Engineering: Made in Italy quality guarantees reliability for critical industrial processes.
When your industrial application demands maximum fluid volume delivery with exceptional durability, the UDOR GAMMA-IL 200 TS 1C is the engineered solution.
Technical Details:
Pressure: 80 bar / 1160 psi
Flow Rate: 215 L/min
Required Power: 42.2 HP / 31.5 kW
RPM: 600
Pump Head Material: Forged Brass
Crankcase: Aluminum Die Cast (Cataphoresis Coated)
Plungers: 6 Solid Ceramic
Shaft: 35 mm Male
Made in Italy
