SHAMAL K50/900 FT10+10 Belt Driven Air Compressor 11Bar 900Liter 10+10HP (380V)

Description:

The 20HP Industrial Air Generation System.

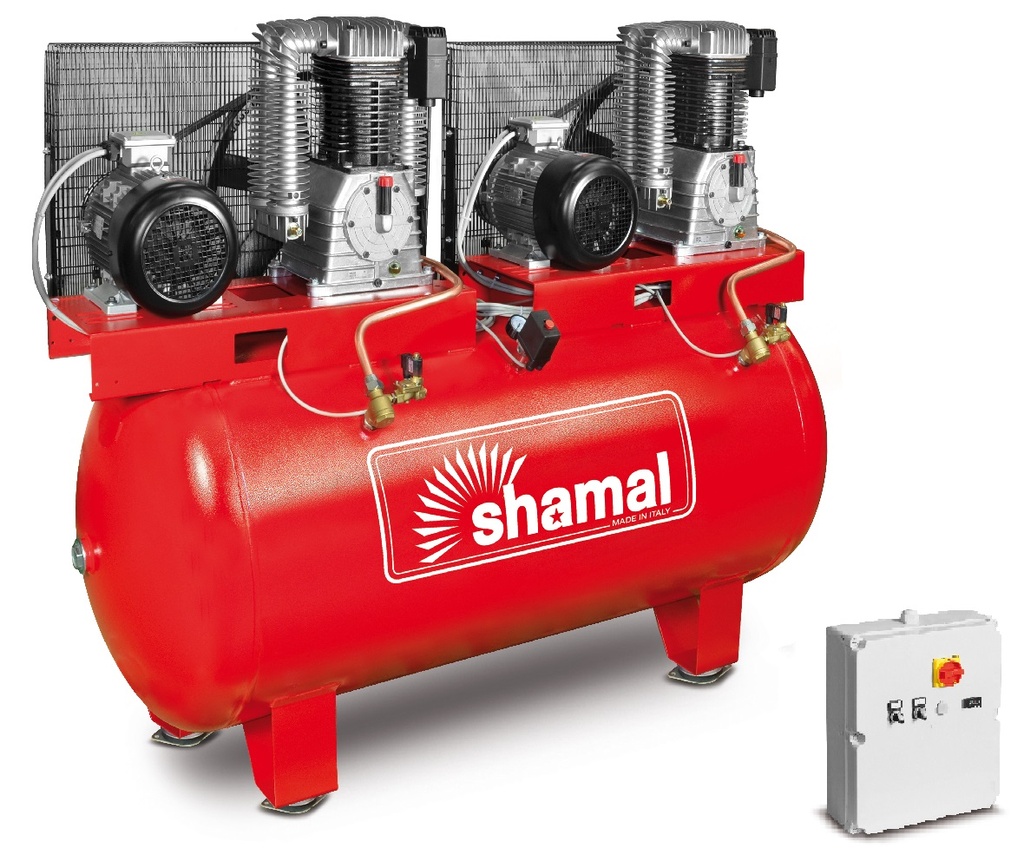

Introducing the SHAMAL K50/900TD, the apex of industrial "Tandem" compressors. This is not just a compressor; it's a complete air generation plant, combining the power of two 10 HP motors and two K50 pumps on a massive 900-liter tank, for a total of 20 HP output.

This system is engineered for full-scale manufacturing plants, heavy industrial fabrication, shipyards, and large fleet maintenance depots. It is built for operations that run 24/7 and cannot afford any interruption in their air supply.

The primary advantage is the colossal 2184 L/min airflow. This, combined with the 900-liter air receiver and 11 Bar pressure, creates a stable and massive air supply capable of powering entire pneumatic production lines, multiple CNC machines, and heavy-duty sandblasting equipment simultaneously.

The Tandem design is the ultimate in flexibility and reliability. It provides crucial built-in redundancy: if one unit requires service, the other unit takes over, ensuring your production never stops. You can also alternate use to equalize wear or run a single pump during low-demand periods to save energy.

Both robust K50 pumps operate at a low 1000 RPM, ensuring low vibration, manageable noise, and an exceptionally long service life for a 20HP system.

Made in Italy, this 380V (3-Phase) powerhouse is the definitive solution for large-scale enterprises that demand maximum power, volume, and complete operational security.

Technical Details:

• Pump: 2 x K50 (Two-Stage)

• Capacity: 900 Litres

• Power: 20 HP / 15 KW (2 x 10 HP)

• Pressure: 11 Bar / 160 psi

• Airflow: 2184 L/min

• RPM: 1000

• Electricity: 3PH / 380V / 50Hz

• Weight: 598 Kg

• Dimensions: 2270x860x1660 mm

• Made in Italy
