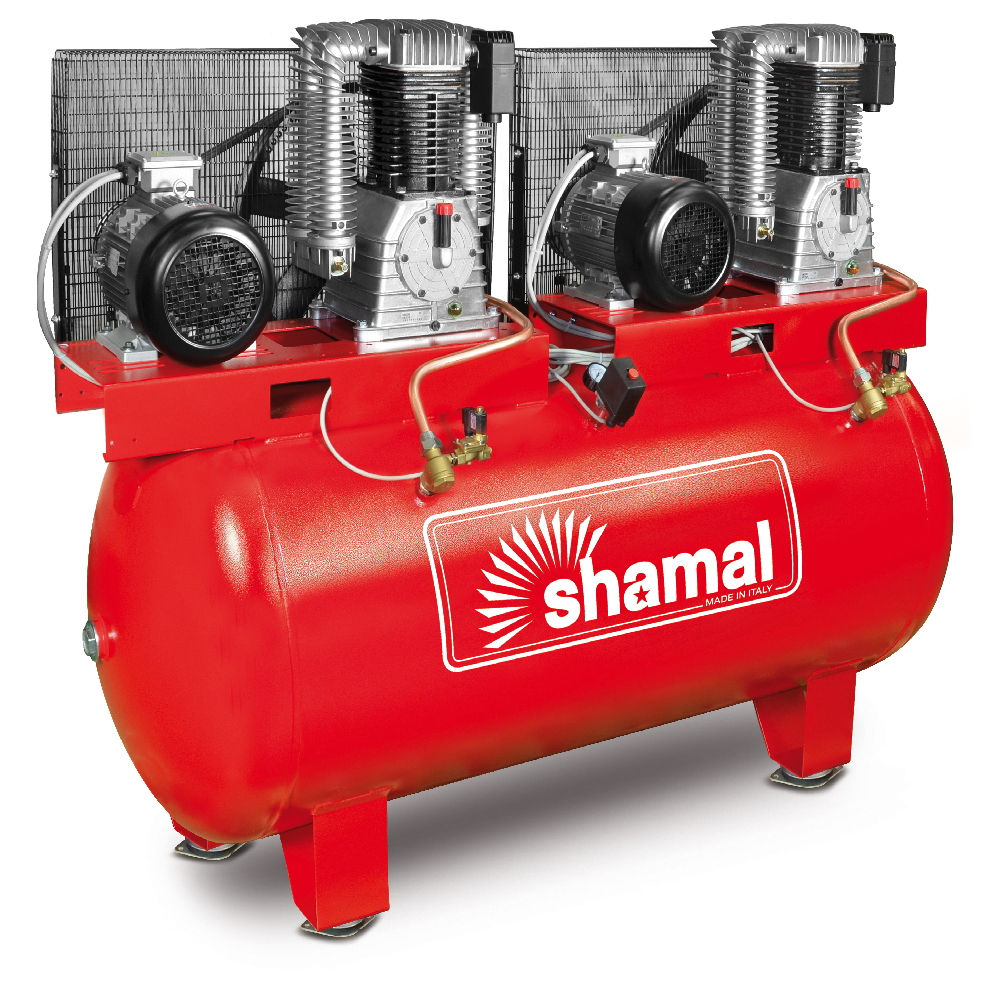

SHAMAL K30/500TD FT7,5+7,5 Belt Driven Air Compressor 11Bar 500Liter 7.5+7.5HP (380V)

Description:

Dual Pump Power for Maximum Air Output.

Meet the SHAMAL K30/500TD, a "Tandem" powerhouse designed for serious industrial output. This isn't a standard compressor; it's an advanced system featuring two 7.5 HP motors and two K30 pumps working in unison on a single 500-liter tank.

This machine is built for high-volume manufacturing plants, large-scale automotive body shops, bus fleet maintenance garages, and any application that requires massive, continuous airflow without interruption.

The primary benefit is the enormous 1744 L/min airflow. This massive output, combined with 11 Bar of pressure, can power entire pneumatic production lines, multiple paint booths, or several workstations simultaneously without any drop in performance.

The Tandem design also offers unmatched flexibility and reliability. You can operate one pump for light loads (saving energy) or engage both for maximum demand. This also provides crucial built-in redundancy; if one unit requires service, the other can continue operating, preventing costly total shutdowns.

Both pumps operate at a low 1200 RPM, ensuring low vibration, reduced noise, and an exceptional service life, even under the most demanding industrial use.

Made in Italy, this 380V (3-Phase) system is the definitive solution for businesses that cannot afford downtime and require massive, reliable air-on-demand.

Technical Details:

• Pump: 2 x K30 (Two-Stage)

• Capacity: 500 Litres

• Power: 15 HP / 11 KW (2 x 7.5 HP)

• Pressure: 11 Bar / 160 psi

• Airflow: 1744 L/min

• RPM: 1200

• Electricity: 3PH / 380V / 50Hz

• Weight: 320 Kg

• Dimensions: 2010x650x1330 mm

• Made in Italy
