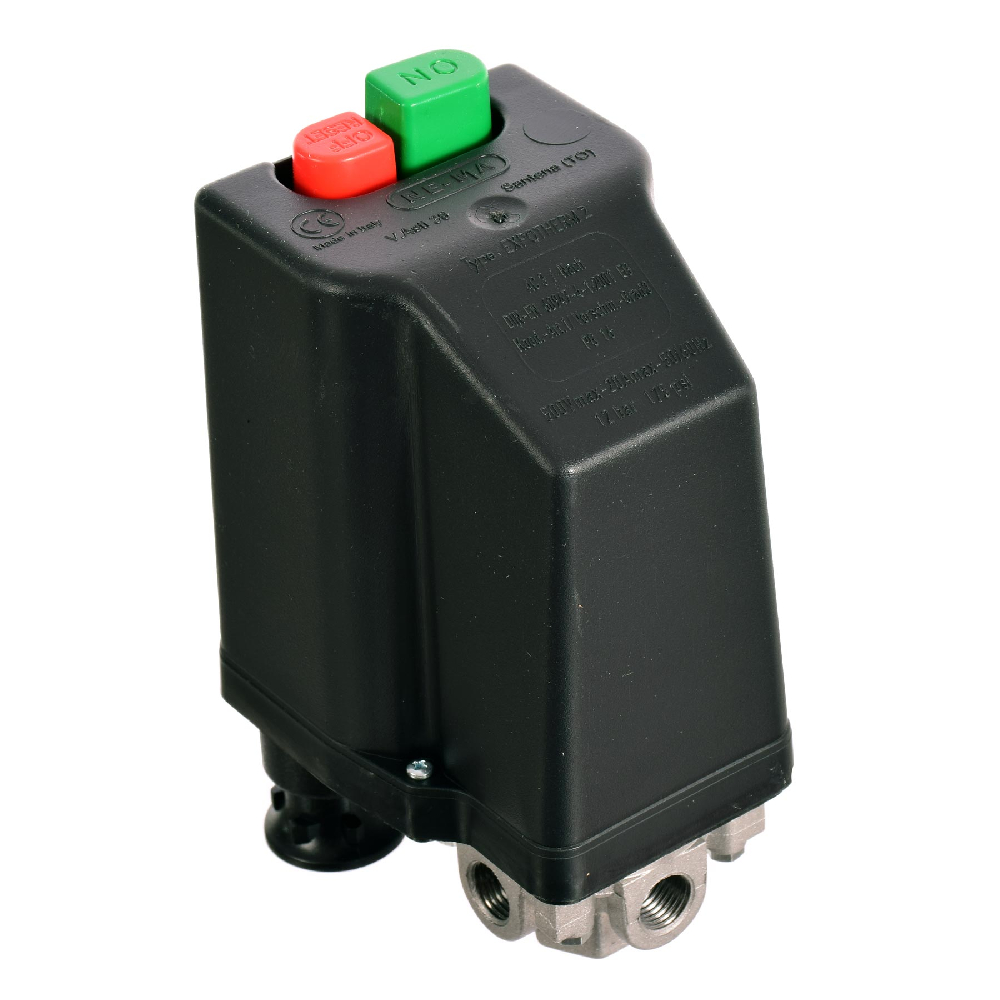

NE-MA Air Compressor Pressure Switch With Integrated Overload 17/23 amp 380V 12Bar

Description:

The NE-MA Air Compressor Pressure Switch with Integrated Overload 17/23 Amp 380V 12Bar is a professional-grade Italian switch built for three-phase air compressors used in car washing centers, detailing shops, and car care facilities. Designed with a built-in overload protection (17–23 Amp), it ensures safe and stable operation by preventing motor damage caused by excessive current or pressure fluctuations.

This reliable switch offers precise control of air pressure, consistent performance, and long-lasting durability—making it ideal for professional environments that demand non-stop efficiency and safety.

Technical Details:

• Type: Air Compressor Pressure Switch with Integrated Overload

• Model: NE-MA 380V / Overload 17–23 Amp

• Voltage: 380V – Three Phase

• Frequency: 50/60 Hz

• Max Cut-Out Pressure: 12 Bar

• Min Working Pressure: 4 Bar

• Poles: 3 (N.C.)

• Overload Range: 17–23 Amp

• Protection Class: IP42

• Cable Glands: 2×Pg13 (Ø13mm)

• Country of Origin: Italy
