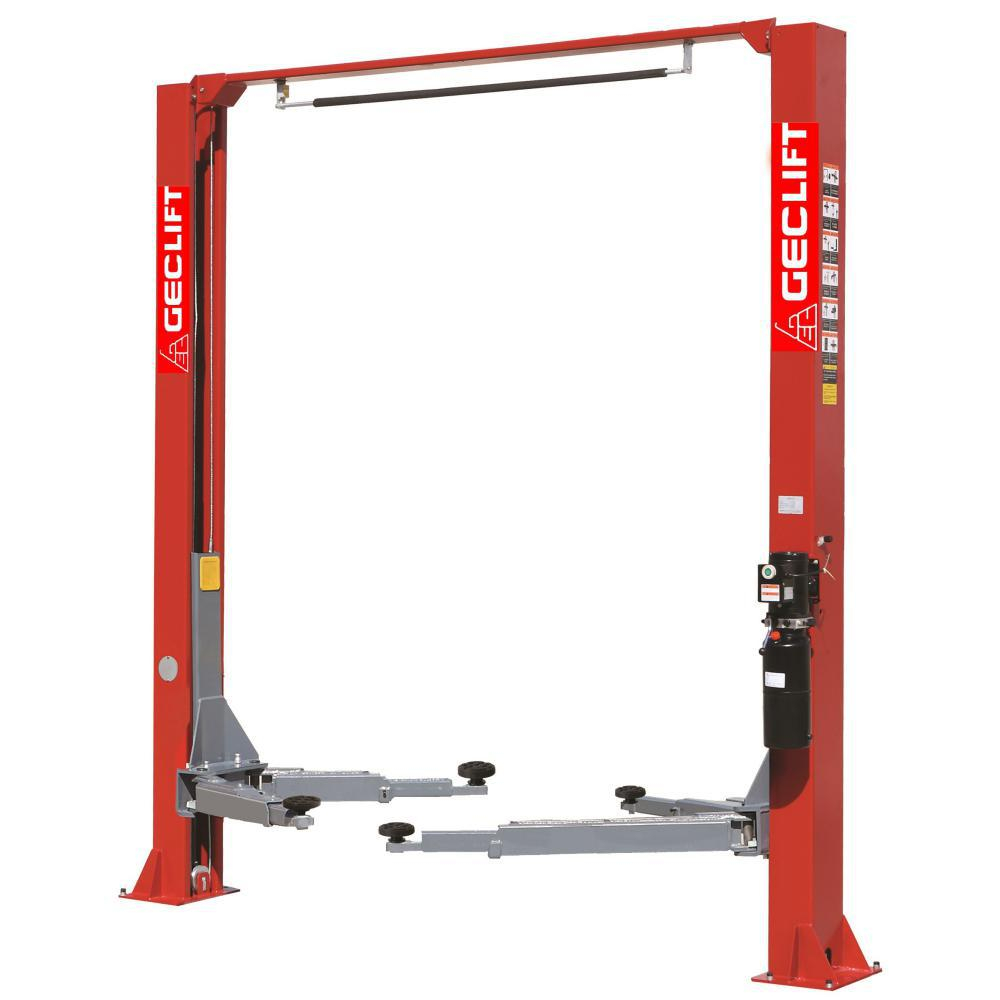

GEC QJ-Y-2-40D Overhead 2-Post Lift 4 Ton

Description:

The GEC QJ-Y-2-40D Overhead 2-Post Lift (4 Ton) is a heavy-duty and reliable lifting solution designed for professional workshops, service centers, and car care facilities. With a 4-ton lifting capacity and 2000mm lifting height, it provides safe, efficient vehicle access for inspections, repairs, and maintenance.

Built with a double S-shape column design (8 times bending), it offers superior strength and stability compared to older models. The double lock release system ensures safe operation, while the rubber-protected overhead bar automatically cuts off power when the vehicle roof reaches the limit — ensuring full protection.

Its baseless structure allows easy movement of equipment under lifted vehicles, and every unit is CE certified by the UK, having passed 115% dynamic and 150% static load tests.

Key Features:

• 4-ton lifting capacity for a wide range of vehicles

• Double S-shape column for extra strength and durability

• Dual safety lock release for maximum security

• Overhead design with rubber protection for safety cut-off

• Baseless structure for easy equipment movement

• Tested and CE certified for international standards

• Ideal for car workshops, garages, and service centers

Specifications:

• Lock/Release System: Double Point

• Lifting Capacity: 4000 kg (9000 lb)

• Lifting Height: 2000 mm (70.9")

• Width Between Columns: 2800 mm (110")

• Arm Reach Front: 710–1050 mm (27.9”–41.3”)

• Arm Reach Rear: 760–1200 mm (29.9”–47.2”)

• Limit Switch Height: 3440 mm (135.4”)

• Concrete Thickness: 150 mm (5.9”)

• Lifting Time: 50 s

• Motor Power: 2.2 kW (3 HP)

• Weight: 610 kg
