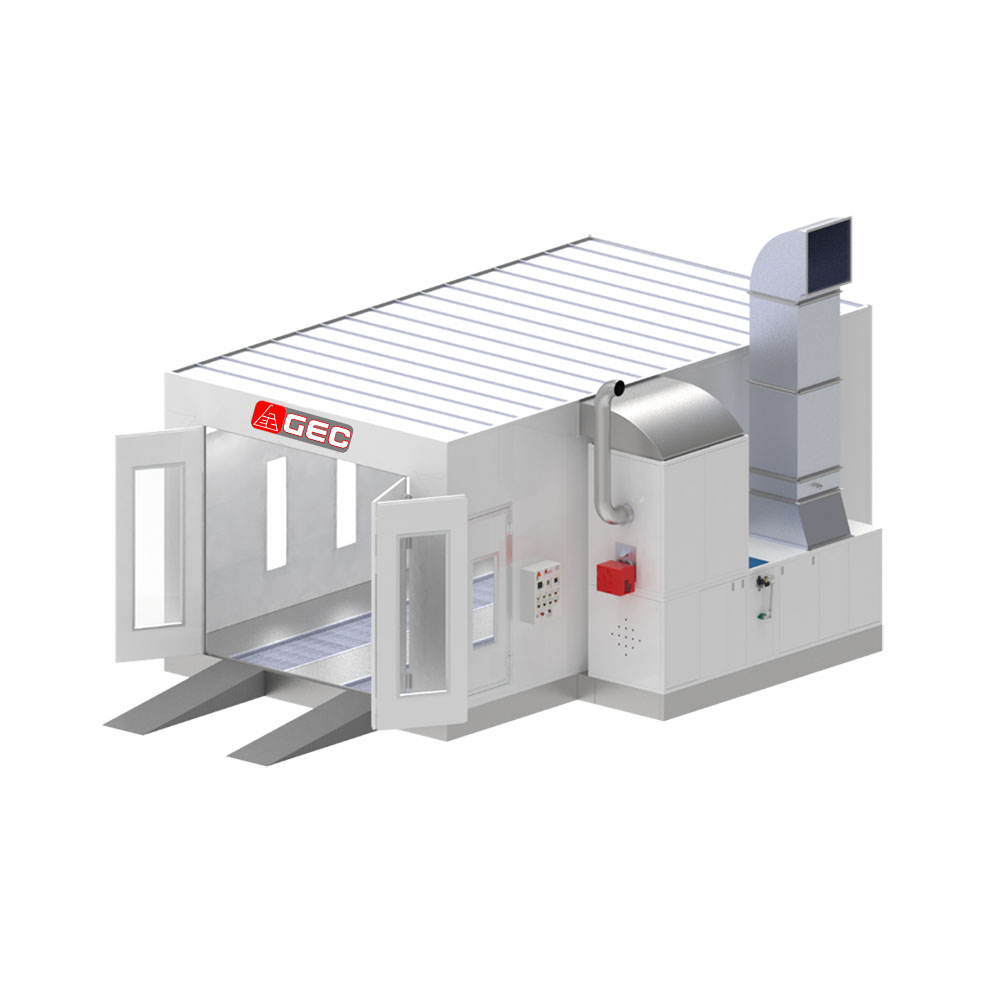

GEC C702 Spray Booth & Painting For Cars 4*6.9*2.8 Meters 380V
Description:
Upgrade your car painting workflow with the GEC C702 Spray Booth, designed for efficiency, safety, and precision.
Features:
Low Noise: Acoustic emission under 75 dB (average 73 dB) ensures a quieter working environment.
LED Lighting: High-brightness LED lights (+1000 lux) for perfect visibility during painting.
Double Turbine: Reduces vibrations and guarantees uniform airflow with no turbulence.
Double Glazing: Air chamber prevents heat loss, maintaining temperature stability.
Laminated Glass: Premium laminated glass throughout the booth for safety and durability.
Top-Brand Components: Constructed entirely from high-quality European components.
High Modularity: Flexible installation options to fit any space or customer requirement.
European Standards: Fully manufactured according to CE standards.
Genuine Spare Parts: Ensure long-lasting and reliable operation.
Specialized Technical Service: Dedicated GEC technical support and after-sales service.
Technical Details:
Dimensions: 6.9 × 4 × 2.8 m (Inside height 2.65 m, Outside height 3.4 m)
Frontal Door: 3-wing, passage 3 × 2.6 m; Inspection windows 550 × 1800 mm; Personnel door 0.8 × 2 m
Air Generator Unit: Airflow 24–25,000 m³/h, Motor 7.5 kW, Noise <75 dB, Thermal Power 200 kW
Thermal Equipment: Diesel burner, recycling system, max temp 80°C
Air Extractor Unit: Airflow 24–26,000 m³/h, Motor 7.5 kW, Noise <75 dB

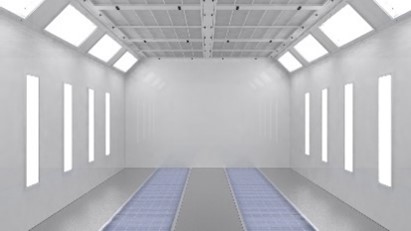

Lighting: Upper 32 LED fixtures, Side 16 LED fixtures, Intensity +950 Lux
Floor: 6.9 × 4 × 0.3 m, Load 650 Kg per wheel, Paint-Stop EU3 filters
Power Requirements: 16 kW, 380V 3PH+N+PE
Enhance productivity, ensure quality finishes, and maintain safety with the GEC C702 Spray Booth, engineered for professional workshops.
