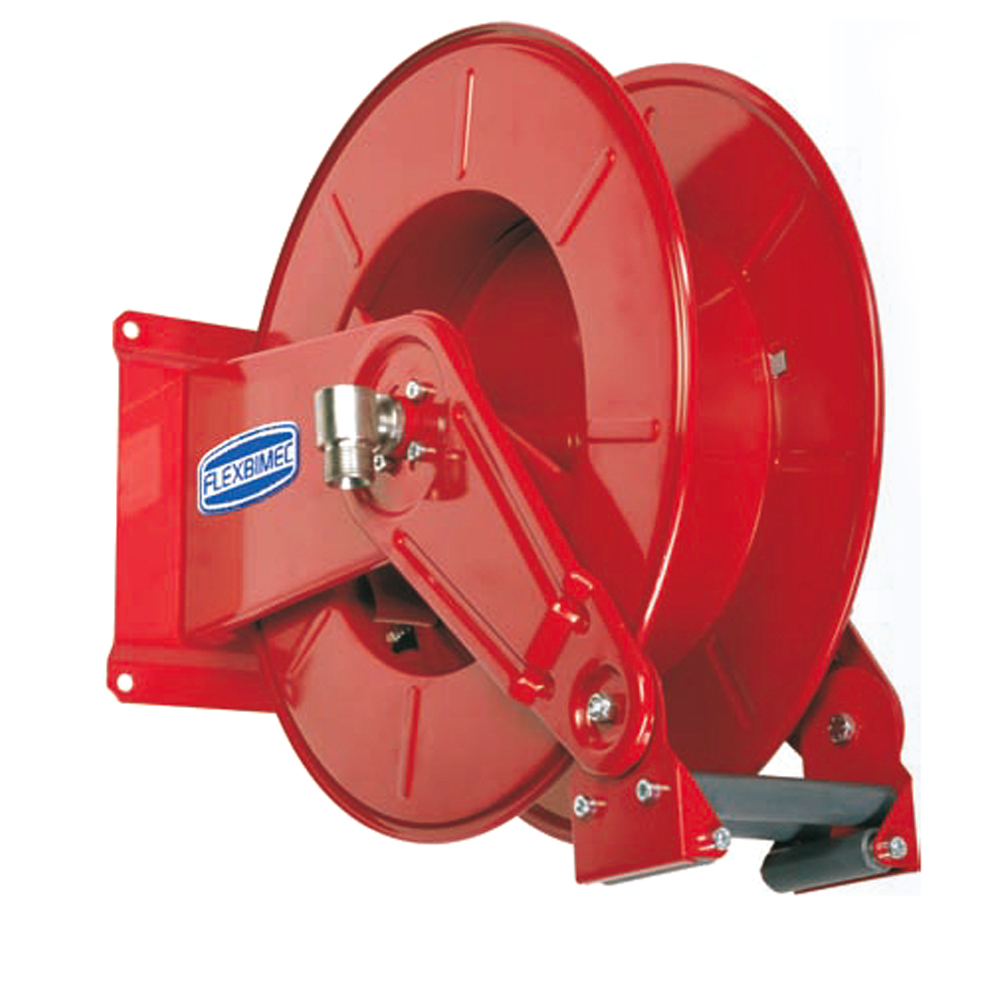

FLEXBIMEC 9084 Automatic Hose Reel 15 Meters - 1 Inch / 20 Meters - 3/4 Inch

Automatic rewind, spring-driven hose reel, adjustable arms series with twin springs, in painted steel, suitable for hoses of max 20 m length in 3/4” and max 15 m length in 1”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, diesel, compressed air, and water. From the inlet swivel joint, the fluid flows through an interchangeable hose connection adapter assembly on which the hose is mounted (standard version galvanized steel)

Technical details:
Max working pressure : 100 bar
Max length hose 3/4″-1 : 20m - 15m
Maximum hose size: 1″
Connection threads IN-OUT : M1″-F1″
Internal swivel joint : 20 mm
Metal : Painted steel
---------
Made In Italy
