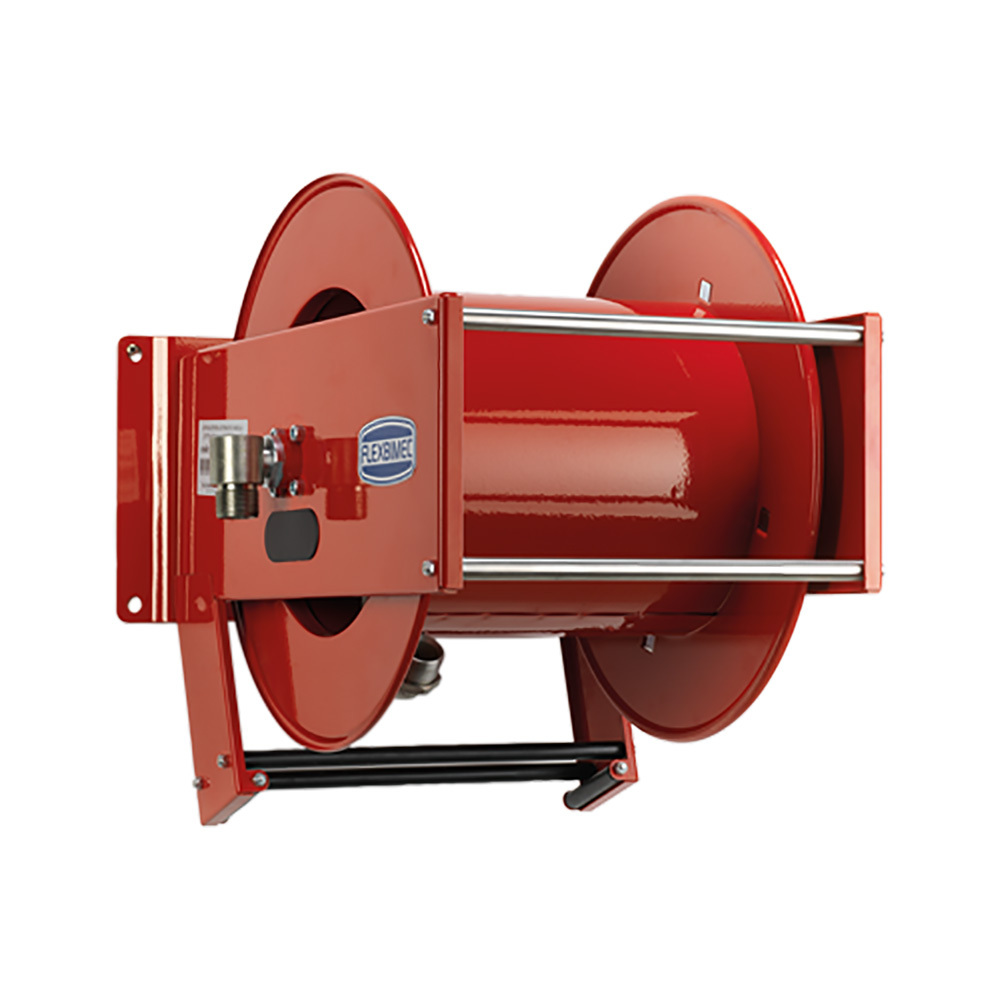

FLEXBIMEC 9036 Automatic Hose Reel 30 Meters - 3/4 Inch / 25 Meters - 1 Inch

Description:

The FLEXBIMEC 9036 Automatic Hose Reel is a spring-driven, self-retracting reel with adjustable twin arms, crafted from painted steel for strength and long-lasting performance. It is designed to handle hoses up to 30 m (3/4”) or 25 m (1”), providing a safe and efficient solution for hose management in demanding work environments. The reel is supplied without hoses and can be used with hoses for the supply of oils, diesel, compressed air, and water. Thanks to the inlet swivel joint with an interchangeable hose connection adapter (standard version galvanized steel), it ensures smooth fluid flow and reliable operation.

Made in Italy – built for professionals.

Technical details:

• Max working pressure: 100 bar

• Max hose length: 30 m – 3/4” / 25 m – 1”

• Max hose size: 1”

• Connection threads IN-OUT: M1” – F1”

• Internal swivel joint: 20 mm

• Material: Painted steel

Made in Italy
