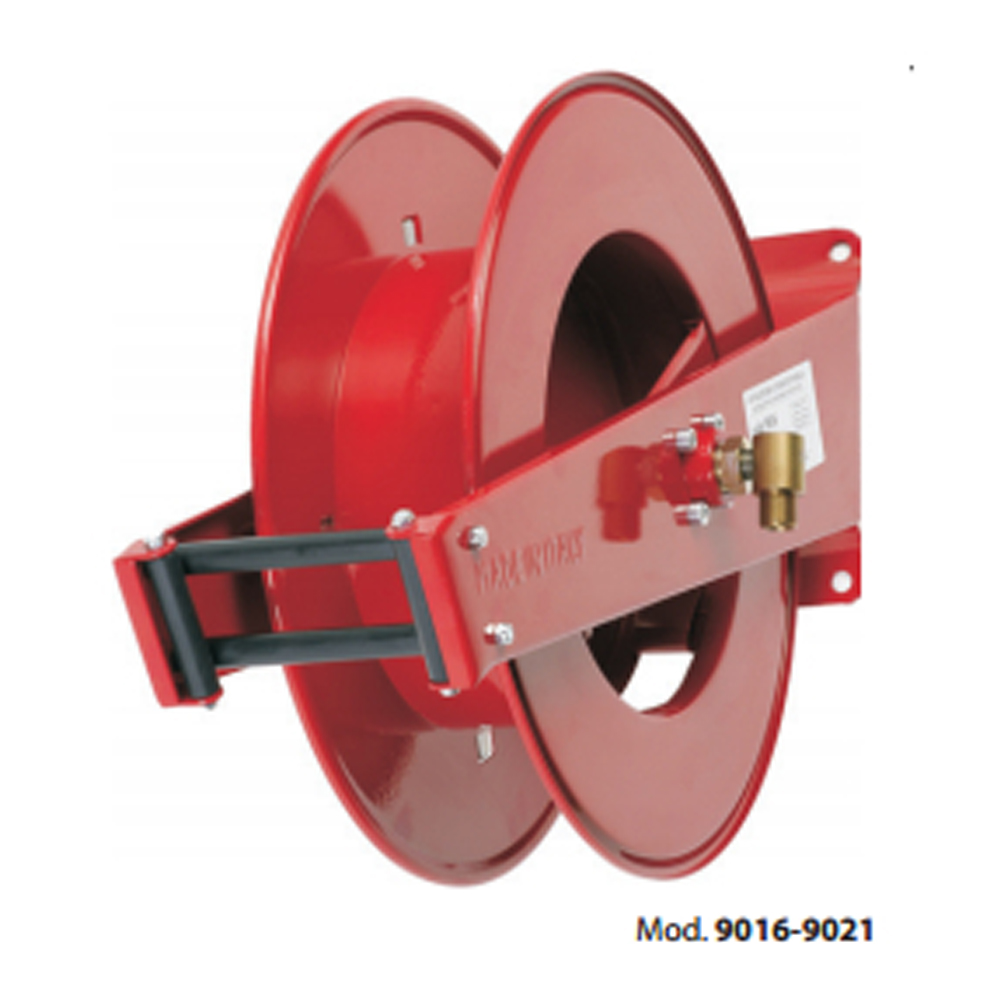

FLEXBIMEC 9016 Automatic Hose Reel 15 Meters - 1 Inch / 20 Meters - 3/4 Inch

Automatic rewind, spring-driven hose reel, adjustable arms series with twin springs, in painted steel, suitable for hoses of max 15 m length (ø hose 1/2”) or max 20 m length (ø hose 3/8”)”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, diesel, compressed air, and water. From the inlet swivel joint, the fluid flows through an interchangeable hose connection adapter assembly on which the hose is mounted (standard version galvanized steel)

Technical details:
Max working pressure : 600 bar
Max length hose : 15m-1/2” / 20m-3/8″
Maximum hose size: 1/2″
Connection threads IN-OUT : M1/2″-F1/2″
Internal swivel joint : 10 mm
Metal : Painted steel
---------
Made In Italy
