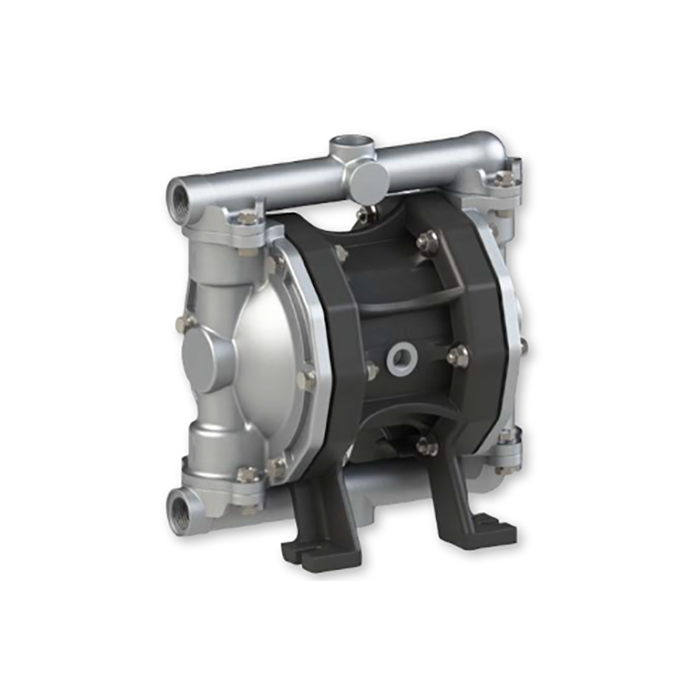

Flexbimec 8321 – ATEX Pneumatic Double Diaphragm Pump | 165 L/min, Self-Priming 6m, Handles Viscosity & 7.5mm Particles

Description:

The Flexbimec 8320 Pneumatic Double Diaphragm Pump is engineered for safe and efficient fluid handling in industrial environments. Built with durable materials and ATEX Zone 2 certification, it ensures reliable operation even in explosive atmospheres. This pump is ideal for transferring high-viscosity liquids and fluids containing particles up to 4 mm, with strong self-priming and dry-running capabilities.

Technical Details:

• Max Flow Rate: 100 l/min

• Max Suction Lift: 6 m

• Dry Running Capability: Yes

• Viscosity & Particle Handling: Up to 4 mm

• Body Material: Aluminium

• Diaphragms: Hytrel® + PTFE

• Balls: PTFE

• O-Rings: Viton®

• Seats: Aluminium

• Compressed Air Supply: 2–7 bar

• Air Consumption: 250 l/min

• Air Inlet Connection: F 3/8″ BSP

• Fluid Connections: F 3/4″ BSP

• Dimensions (LxWxH): 265x175x245 mm

• Weight: 7 kg

• Certification: ATEX 2014/34/EU – Zone 2
