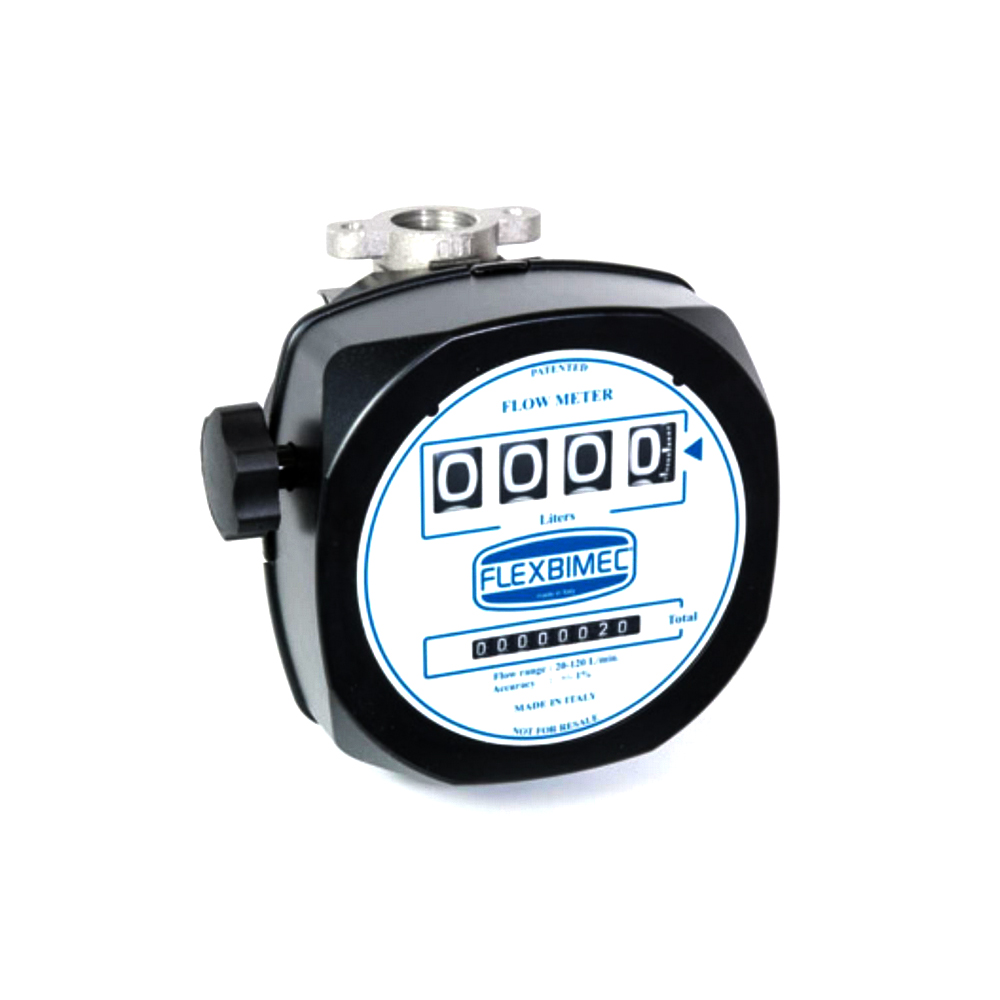

FLEXBIMEC 2868 Mechanical Diesel Flow Meter 1 Inch (ATEX)

The FLEXBIMEC 2868 is a high-precision, Italian-made mechanical flow meter designed for diesel, petrol, and kerosene. Built with a nutating disk mechanism, it ensures accurate measurements in both pump-fed and gravity-fed applications.

Equipped with a 4-digit partial counter (up to 9999 liters, resettable) and an 8-digit totalizer (non-resettable), this meter is suitable for demanding industrial use. The rotatable head allows flexible installation in various flow directions.

Certified according to ATEX 94/9/EC – IECEx (Group II, Category 2, G IIB T6), it is ideal for explosive-risk environments such as fuel stations and hazardous work areas.

Key Features:

• Flow range: 20–120 l/min

• Max working pressure: 3.5 bar

• Burst pressure: 28 bar

• Accuracy: ±1%

• Resolution: 0.01 L

• Thread size: 1″ BSP (female)

• Rotatable upper part for flow direction flexibility

• Made in Italy – premium European quality
