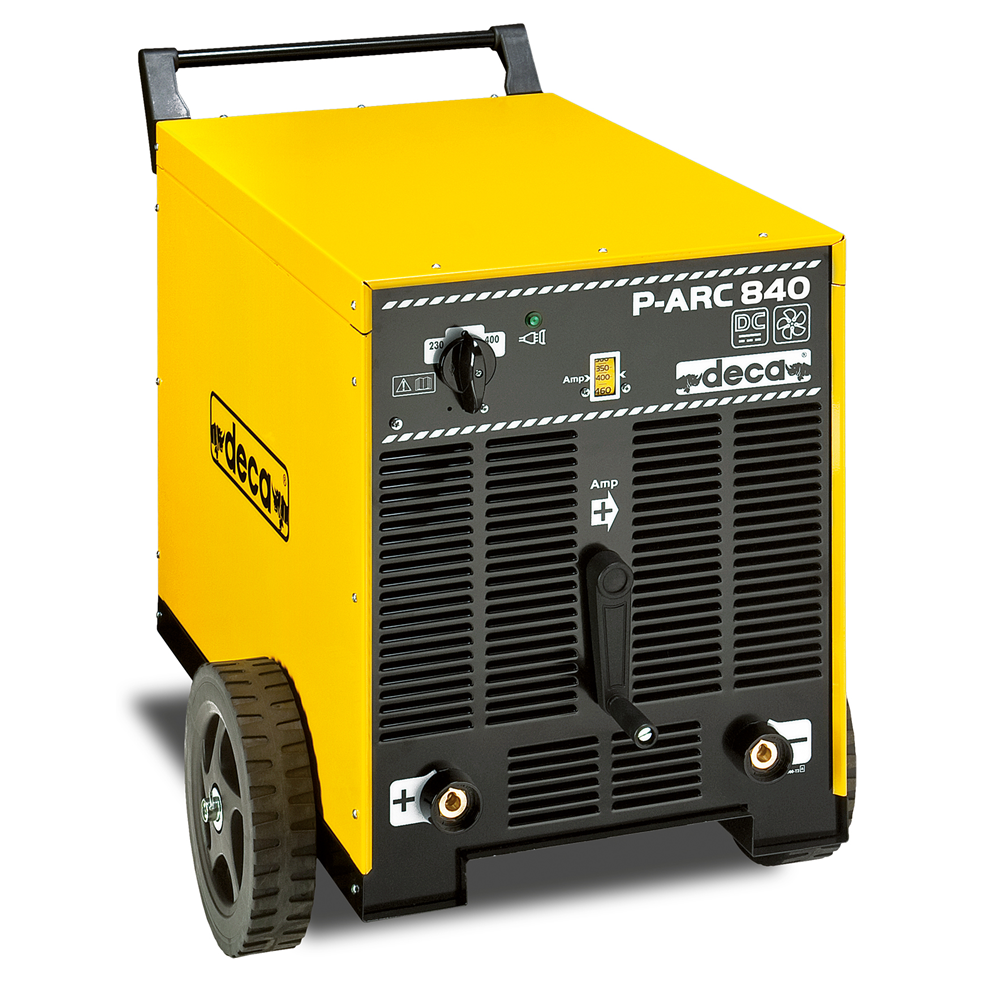

DECA P-ARC 840 LAB Direct Current Electrode Welder 3Ph - 230/400V - 50/60Hz

Description:

The DECA P-ARC 840 LAB is a heavy-duty welding generator built for craftsmen, blacksmiths, maintenance workers, and heavy carpentry applications. Engineered in Italy with the LAB mark of excellence, it ensures unmatched durability, reliability, and consistent welding performance.

• Provides 400 Amps of DC power, suitable for electrodes from 1.6 to 8.0 mm.

• Welds with rutile and basic coated electrodes on steel, stainless steel, cast iron, and more.

• Powered by a robust three-phase 230/400V supply.

• Easy-to-use system with:

  • Continuous welding current adjustment.

  • Forced ventilation for improved cooling and extended duty cycle.

Technical Details:

• Welding Current Range: 70 – 400A

• Duty Cycle (EN 60974-1 @ 40°C): 380A – 35% / 250A – 60%

• Open Circuit Voltage: 70 – 76V

• Input Voltage: 3Ph – 230/400V

• Absorbed Power (60% / Max): 9 / 17 kW

• Fuse: 63/40A

• Electrodes: Rutile Ø 2.0–8.0 mm / Basic Ø 2.0–5.0 mm

• Output Connection: DX 70 mm²

• Thermostatic Protection: No

Made in Italy – DECA
