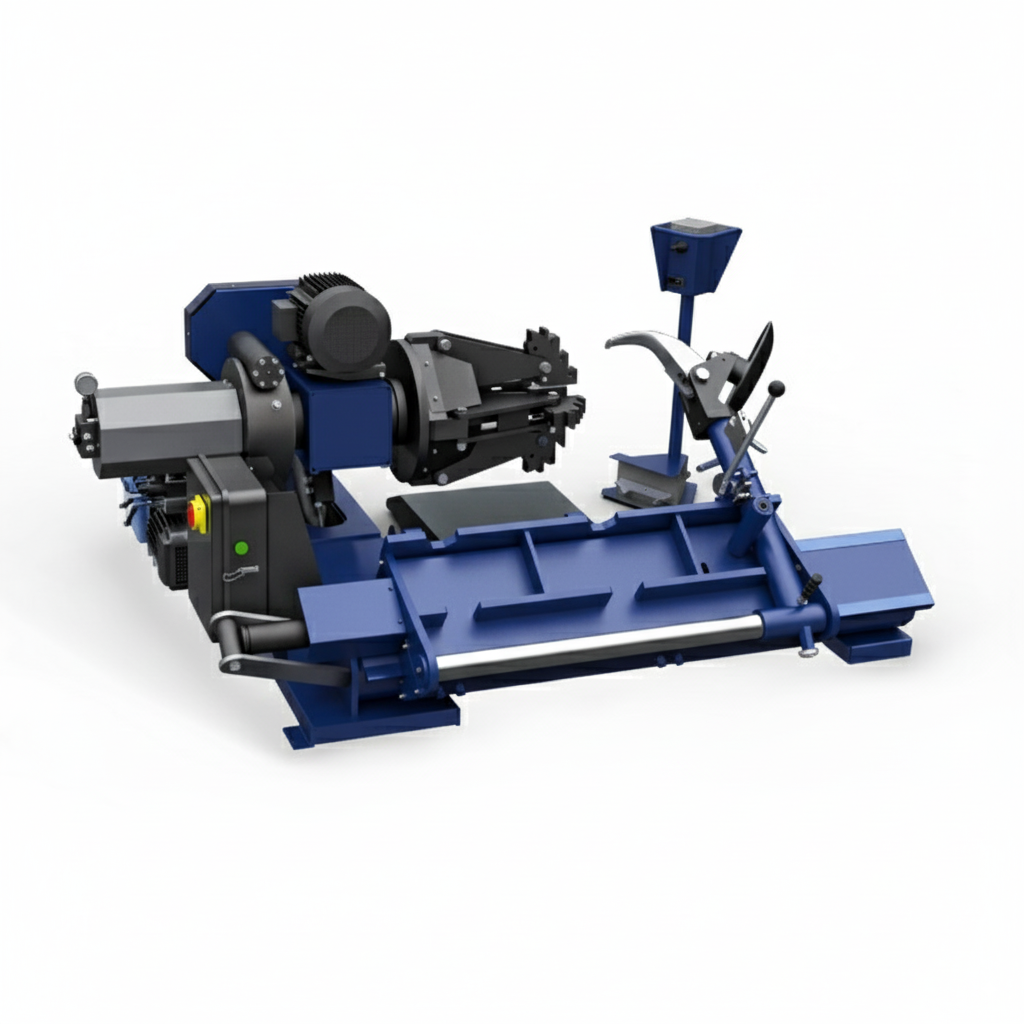

ORLANDINI Truck Pro 590D Automatic Truck Tire Changer 56 Inch Rim
Simple configuration, firm and durable design, continue the
high-performance feature of the 590 series, simplified operation mode,
increase the interaction between the operator and the product.
- Adopt hydraulic control system , rim clamping reliable, moving stable. Hydraulic stations adopted imported components, with stable performance.
- Meet CE requirements, totally safe during operation.
- The lifting arm oil cylinder is center support.
- Movable operating stations can be fully observed during operation to prevent danger by misoperation.
- The gearbox is made of aluminum alloy die casting, which is lightweight, has a beautiful appearance, is high intensity, and has good sealing performance.
- The electric cabinet adopted CE-level protection standards.
- The lifting arm and the base are made of strengthened and thickened metal, with high intensity.
Technical details:
- Rim Diameter: 14” - 46” inch
- Rim range with extension: 46 - 56” inch
- Rim width: 1100 mm
- Max wheel diameter: 2200 mm
- Hydraulic Power: 130 - 150 bar
- Hydraulic Station Motor Power: 1.5kW 380V/3PH 50HZ
- Main Shaft Motor Power: 2.4kW/380V/50HZ/3P
- Noise: ＜75dB
- Net Weight: 891 KG
Simple configuration, firm and durable design, continue the
high-performance feature of the 590 series, simplified operation mode,
increase the interaction between the operator and the product.
- Adopt hydraulic control system , rim clamping reliable, moving stable. Hydraulic stations adopted imported components, with stable performance.
- Meet CE requirements, totally safe during operation.
- The lifting arm oil cylinder is center support.
- Movable operating stations can be fully observed during operation to prevent danger by misoperation.
- The gearbox is made of aluminum alloy die casting, which is lightweight, has a beautiful appearance, is high intensity, and has good sealing performance.
- The electric cabinet adopted CE-level protection standards.
- The lifting arm and the base are made of strengthened and thickened metal, with high intensity.
Technical details:
- Rim Diameter: 14” - 46” inch
- Rim range with extension: 46 - 56” inch
- Rim width: 1100 mm
- Max wheel diameter: 2200 mm
- Hydraulic Power: 130 - 150 bar
- Hydraulic Station Motor Power: 1.5kW 380V/3PH 50HZ
- Main Shaft Motor Power: 2.4kW/380V/50HZ/3P
- Noise: ＜75dB
- Net Weight: 891 KG
