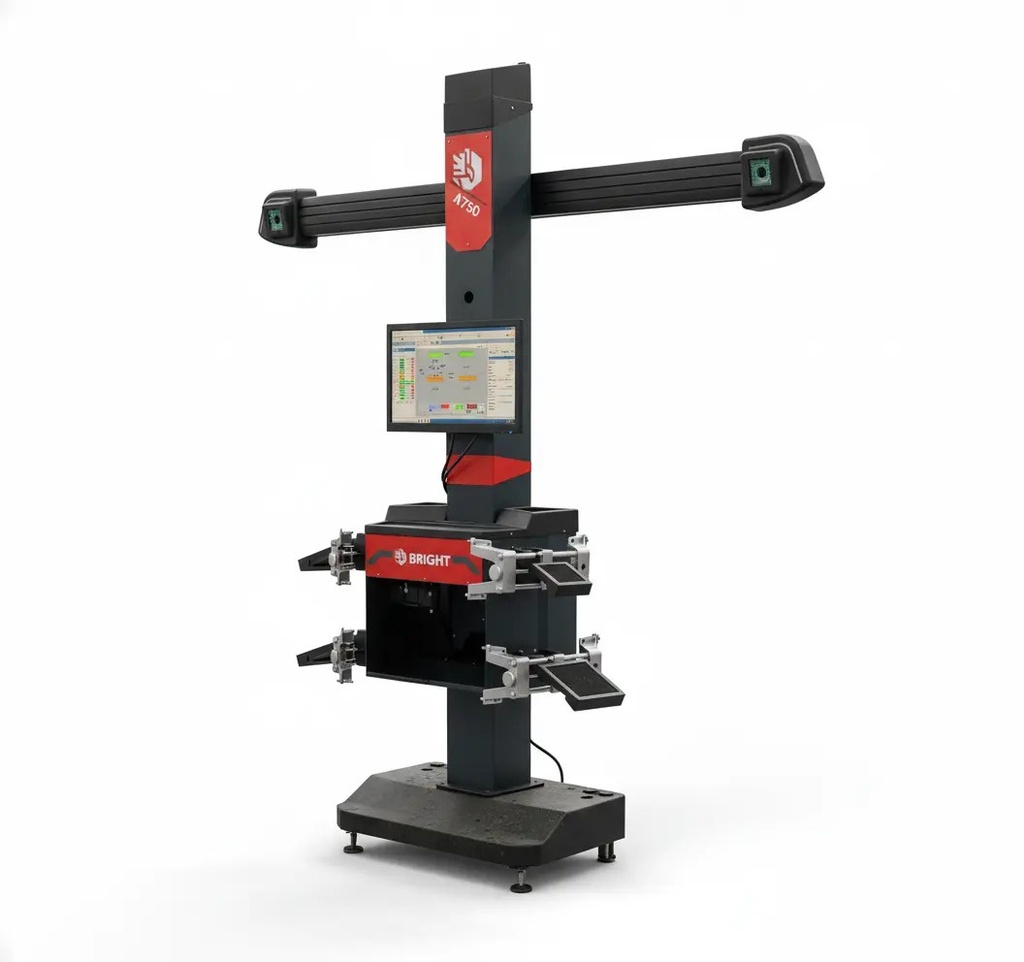

BRIGHT 3D Wheel Alignment Machine A750

Description:

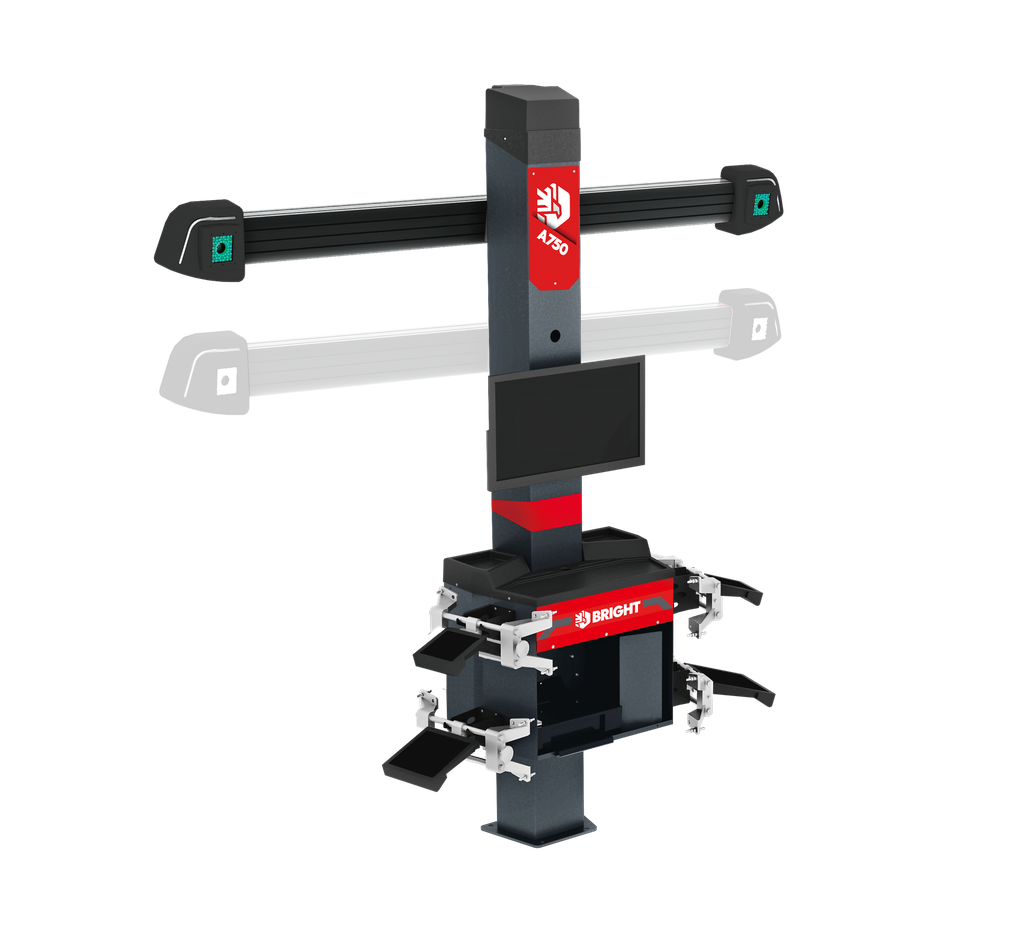

BRIGHT A750 — 3D Wheel Alignment Machine with Auto-Tracking Beam.

The BRIGHT A750 represents the latest in wheel alignment innovation — combining Italian-designed software, ultra-HD precision, and an automated camera tracking beam for a seamless, hands-free experience. Designed to handle all workshop lighting conditions and equipped with a massive alignment database, this machine delivers speed, accuracy, and confidence in every calibration.

Key Features:

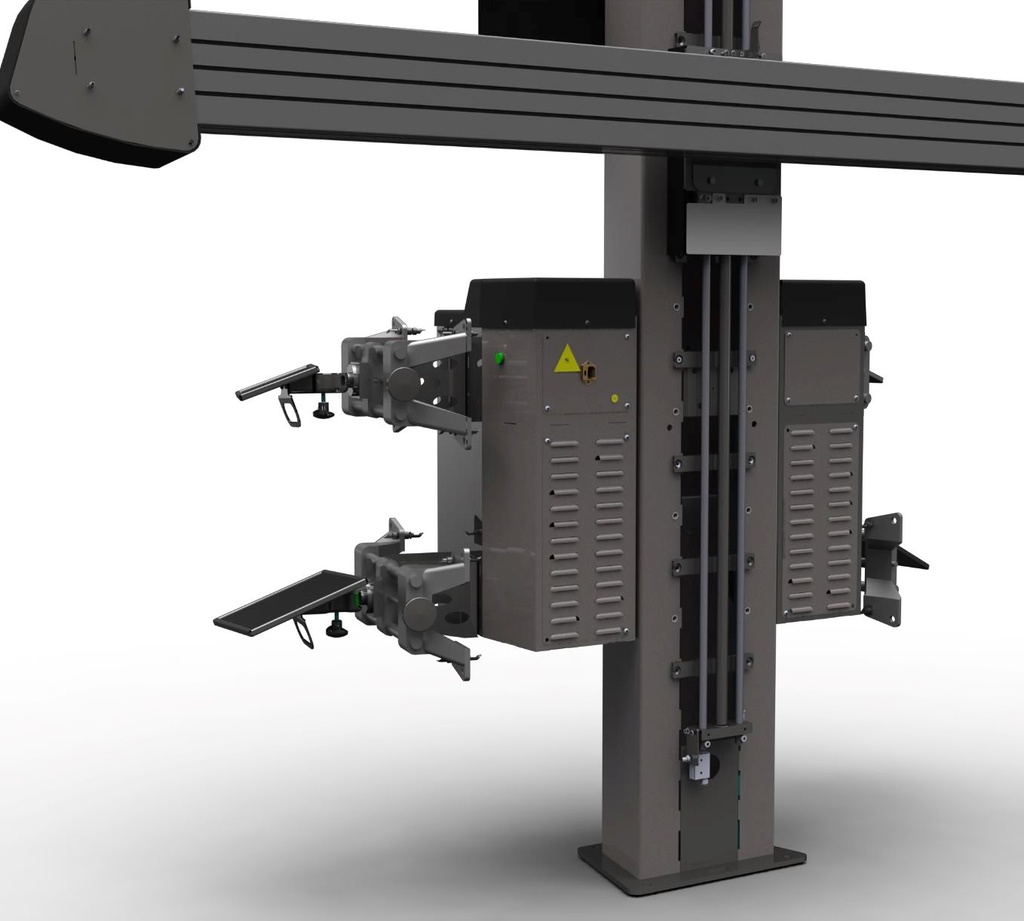

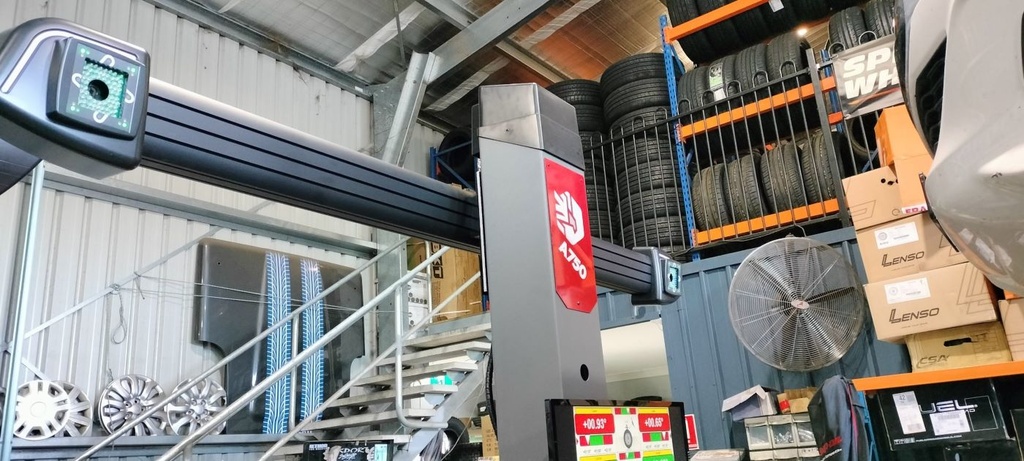

• Auto-tracking camera beam adjustable manually via PG UP/PG DOWN, operates from ground level up to 2.0 meters.

• Friendly and customizable Italian-designed software to fit any workflow.

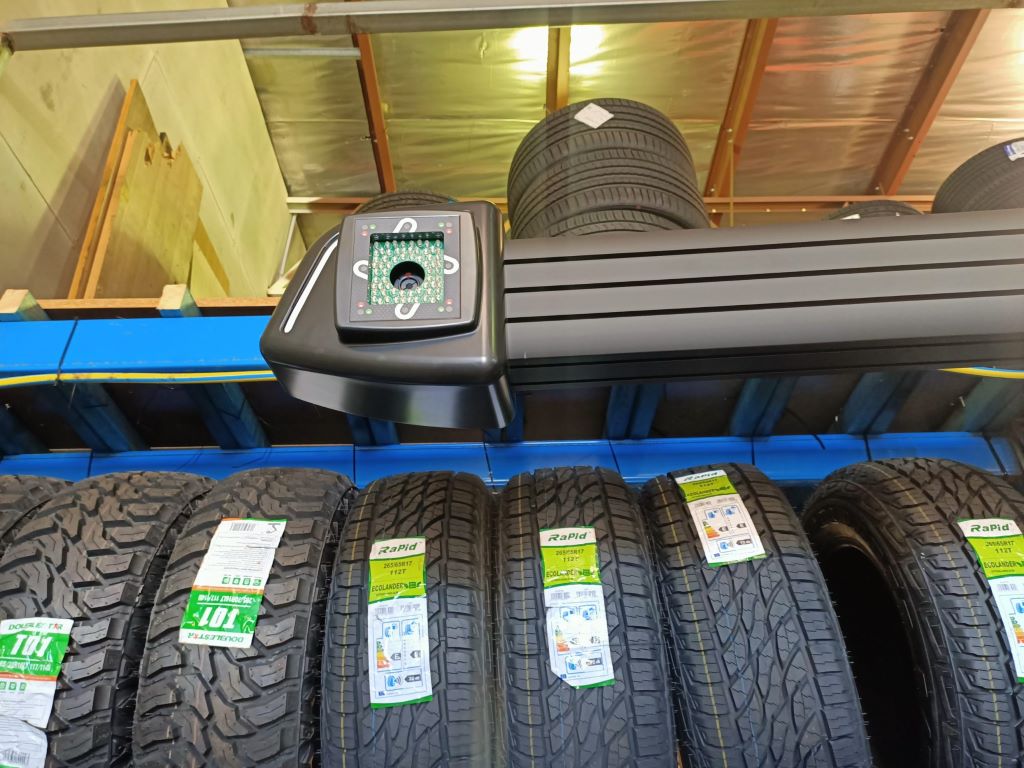

• 10MP high-resolution cameras with UV filters — reliable even in direct sunlight.

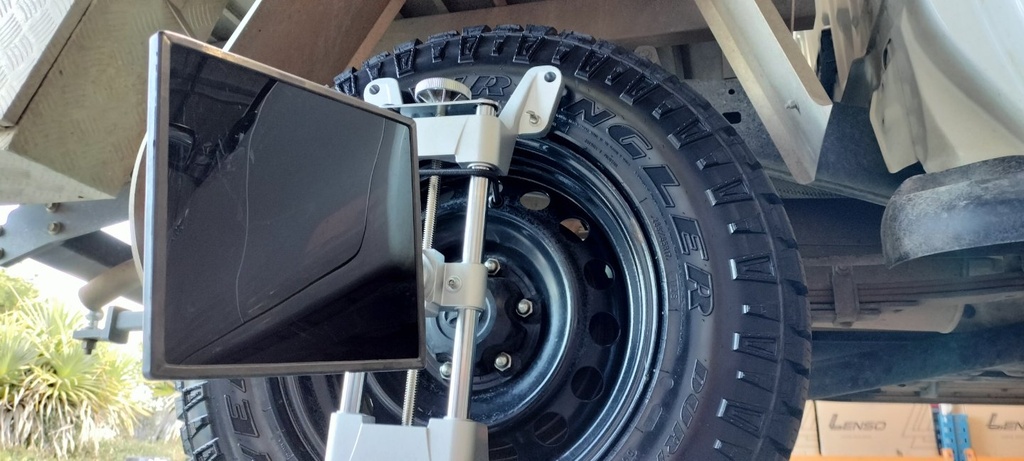

• Glare-resistant HD targets for accurate readings.

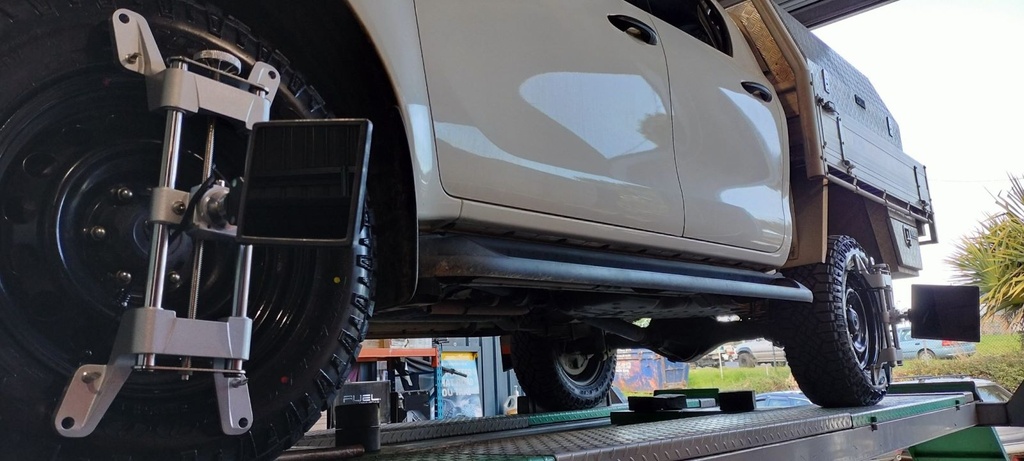

• Self-centering H-style clamps fit 10”–26” wheels without removing hubcaps.

• Light-adaptive sensor system adjusts to workshop conditions in real-time.

• Factory-calibrated — no need for frequent recalibration.

• Database includes specs for over 60,000 vehicles, with annual updates available.

• Trusted data also used by brands like Corghi and Eagle SMF.

Measuring Ranges:

• Total toe: ±20°

• Half toe: ±10°

• Camber: ±10°

• Caster: ±30°

• Kingpin: ±30°

• Set back: ±22°

• Thrust angle: ±10°

• Steering difference: ±20°

Included as Standard:

• Turntables

• Turntable transition blocks

• Steering wheel lock

• Brake pedal depressor

• Wheel chocks

• Windows 10 PC

• 32″ full-height monitor
