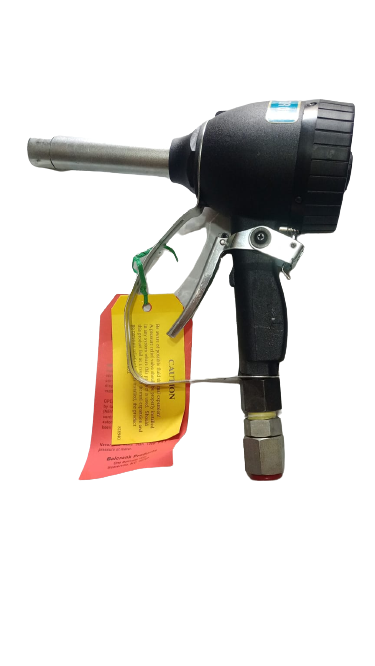

BALCRANK 3331-001 Mechanical Oil Flow Meter Gun
FEATURES
* Rugged die-cast aluminum body construction
* Fluid-tight design
* Includes internal filter
* Well-balanced, comfortable styling
* Automatically shuts off when preset quantity has been dispensed
* No batteries to replace
* Standard with high-flow semi-automatic tip
Technical Details:
Dispense Quantity: Dial face with rotary pointer
Totalizer Quantity: Mechanical 4-digit counter in dispense unit of measure
Operating pressure: 1,000 psi max (70 bar).
Operating Temperature: -6.67°C to 45 °C
Fluid Viscosity: Up to SAE 140 (includes ATF, antifreeze, motor oils and gear oils)
Flow Rate: 0.5-4 GPM (16 L/Minut) operating range
Measuring Accuracy: Error less than 0.65 percent over operating range.
Inlet: 1/2” NPT
Outlet: 1/2” NPT
