كوريك 2 عمود ايطالي موديل OMCN 199/WL - رافعة نقل ومعدات 8 طن وصلة علوية

Description:

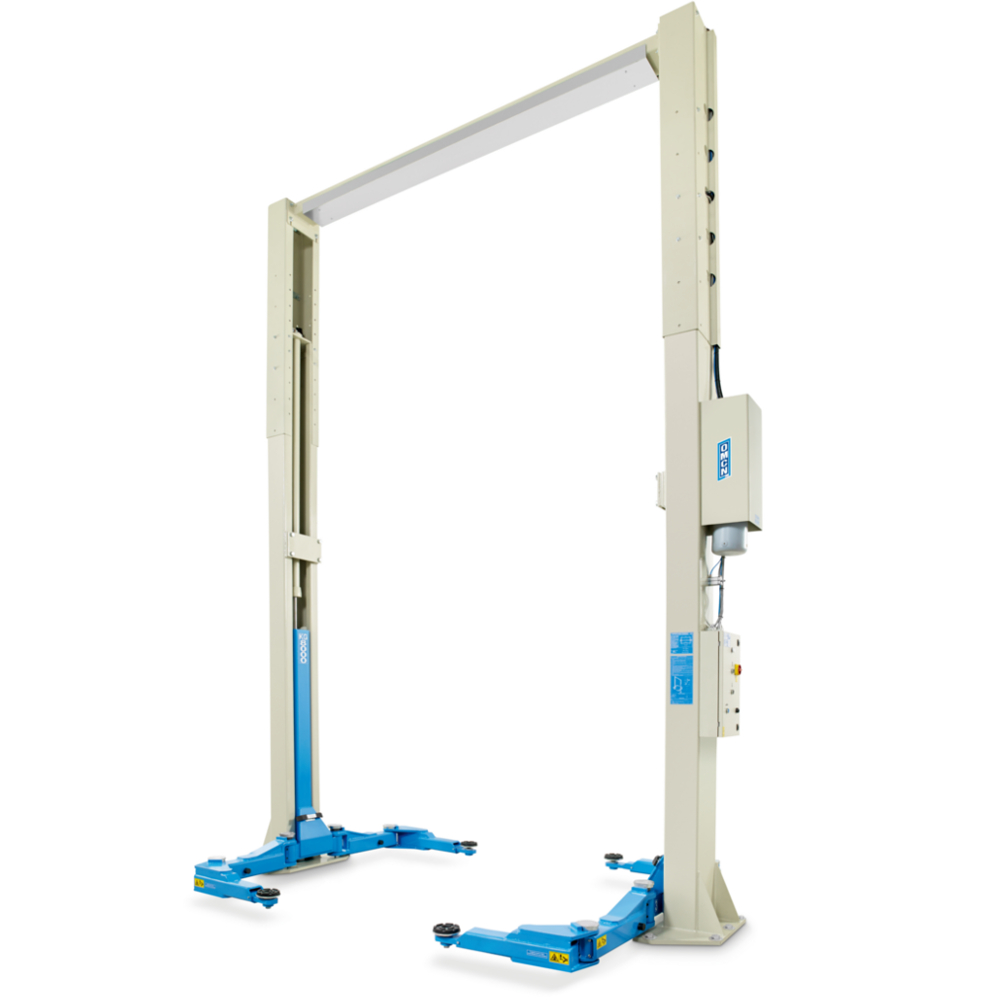

The OMCN 199/WL Overhead Electrohydraulic 2-Post Lift is a top-tier Italian-made lifting system designed for professional service centers, heavy-duty workshops, and fleet maintenance facilities. With an 8-ton lifting capacity, this model combines power, precision, and reliability to handle everything from compact cars to long-wheelbase vans and light trucks.

Built with an advanced electrohydraulic system that eliminates the need for chains, pulleys, or screws, it offers smooth, low-maintenance performance and long-lasting durability. Its PLC-controlled synchronization system guarantees perfect balance between columns, while automatic safety locks and obstruction sensors ensure operator safety at all times.

Features:

• Lifting Capacity: 8 Ton (8000 kg)

• Electrohydraulic System: No chains or pulleys for reduced maintenance

• Hydraulic Cylinders: Dual cylinders for powerful, even lifting

• PLC Logic Control: Ensures precise synchronization between columns

• Safety System: Automatic reset and anti-obstruction sensors

• Overhead Connection: 3-meter clearance for large vehicles

• Control System: 24V low-voltage with emergency stop

• Operation: 400V, 50Hz

• Motor Power: 3.3 kW

• Finish: Epoxy powder-coated for corrosion resistance

• Made in Italy – OMCN Quality Guarantee

Technical Details:

• Model: OMCN 199/WL

• Type: 2-Post Overhead Electrohydraulic Lift

• Capacity: 8 Ton (8000 kg)

• Clearance Between Columns: 3000 mm

• System Type: Electrohydraulic

• Cylinders: 2

• Voltage: 400V / 50Hz

• Motor Power: 3.3 kW

• Control Voltage: 24V

• Finish: Epoxy Powder

• Country of Origin: Italy

Engineered for the toughest workshops — OMCN lifts redefine performance, safety, and reliability in every lift.
