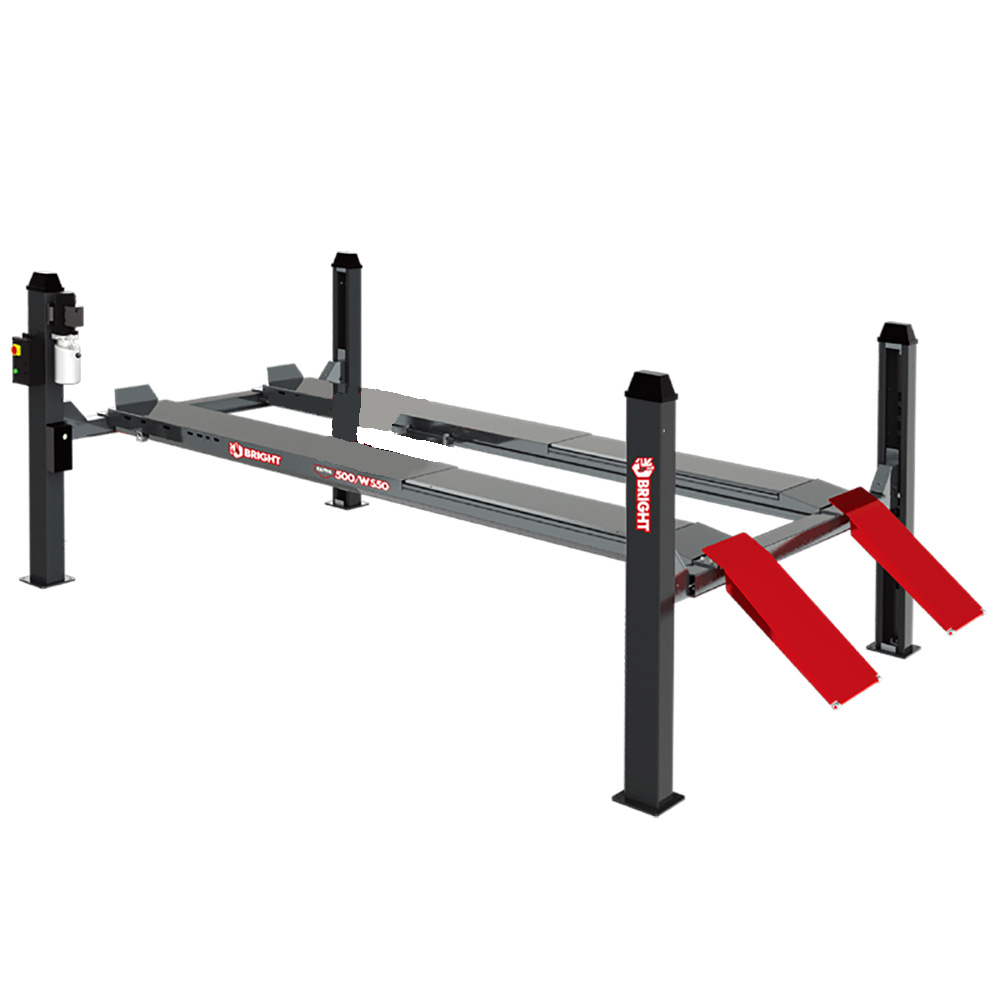

كوريك 4 عمود ماركة برايت 5 طن لضبط الزوايا (بدون كوريك منتصف) - موديل Kappa 500

Description:

Highlights:

• Extended platform, suitable for a wider range of wheelbase models.

• Pneumatic unlocking design with a 4-point locking system for faster and more convenient operation.

• Hydraulic power unit equipped with an oil flow adjustment device to control the lowering speed.

• Steel rope breakage protection device for enhanced safety.

• Adjustable runway spacing to fit vehicles with different wheel widths.

• Multiple spacer blocks for different wheelbase lengths and turntable sizes.

• Optional jacking beam available, operating independently for lifting and lowering.

• 24V safe operation control system.

• Successfully passed 115% dynamic load test and 150% static load test.

Technical Details:

• Lifting Capacity: 5000 kg (11,000 lbs)

• Lifting Height: 245 mm (9-1/2") – 1800 mm (74-3/4")

• Jacking Beam Height: 50 mm (2") – 450 mm (17-3/4")

• Jacking Beam Capacity: 3000 kg (6,600 lbs)

• Air Pressure: 6–8 bar
