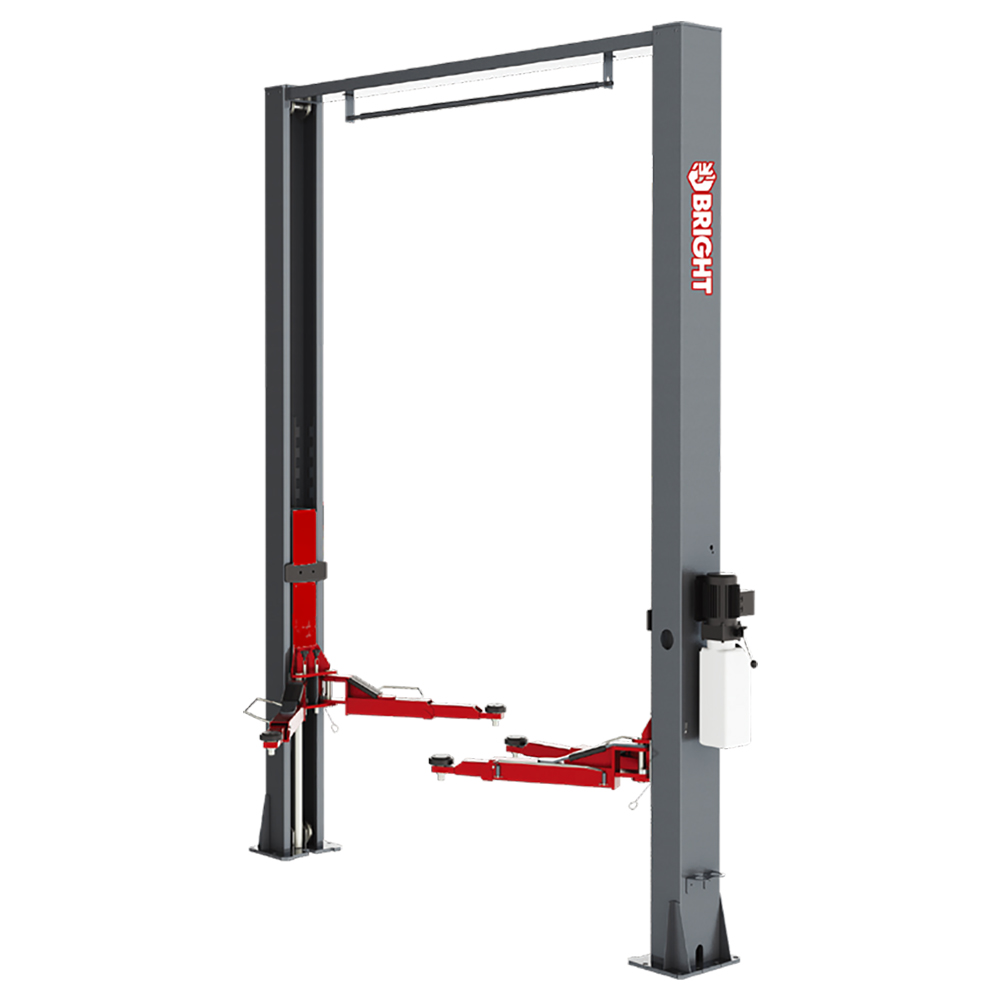

كوريك 2 عمود ماركة برايت موديل BETA 40BE - رافعة سيارات 4 طن وصلة علوية

Description:

The BRIGHT BETA 40BE is a heavy-duty 4-ton overhead 2-post lift, engineered for professional workshops requiring maximum durability, safety, and smooth operation. Built with a 5mm steel plate column and a 16mm bottom foot plate, it ensures exceptional structural strength and stability. The extra-long carriage with 14mm bent steel plates provides added robustness, while the reinforced lifting arms prevent deformation under load.

For operational safety and convenience, the lift features a high-strength fine-tooth locking mechanism, a 115mm steel rope pulley to reduce cable wear, and a height limit microswitch as standard. Maintenance is simplified with a quick-change slider block, and the integrated foot guardrail ensures operator safety.

Technical Details:

• Lifting Capacity: 4000KG (8800 lbs)

• Lift Time: 40s

• Lift Height: 1900mm (75")

• Minimum Height: 98mm (3.8")

• Overall Height: 3705mm (146")

• Post Distance: 2800mm (110")

• Overall Width: 3350mm (130")

• Motor Power: 2.2KW (3HP)

• Power Supply: 220V

• Total Weight: 650KG (1445 lbs)
