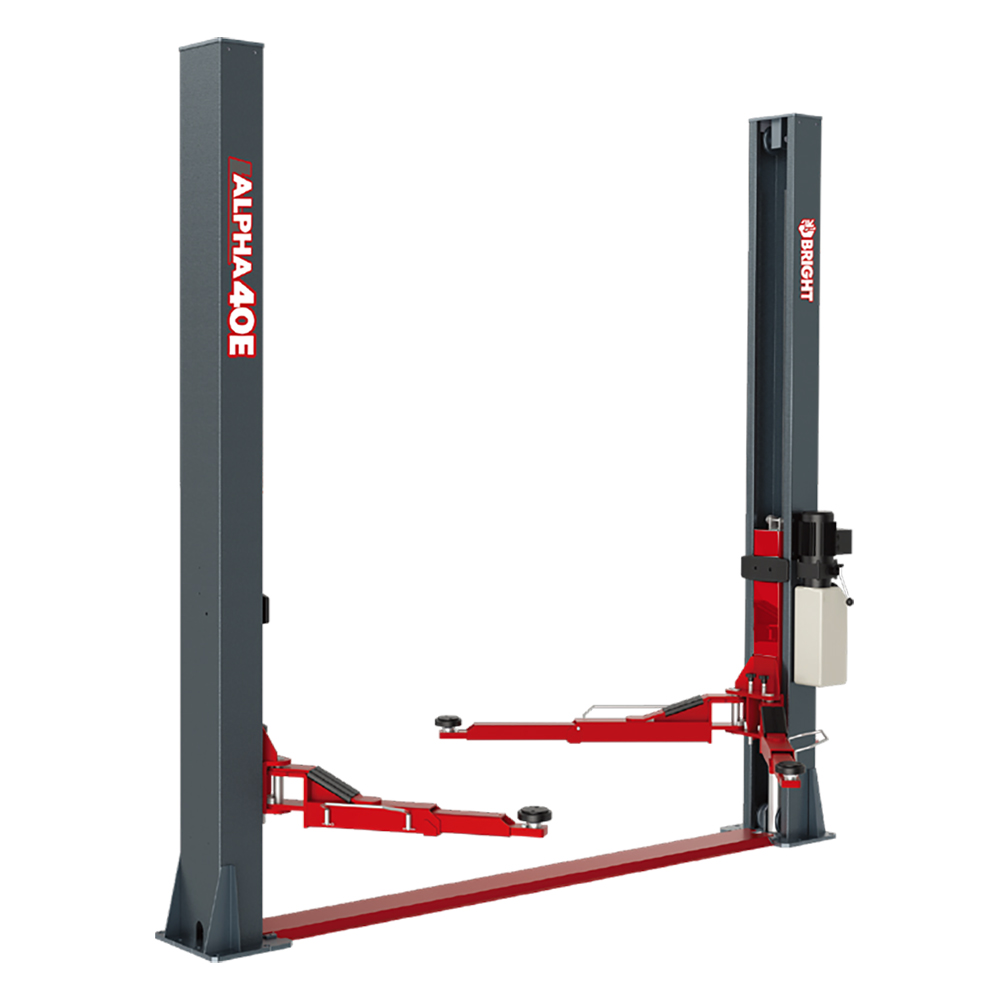

كوريك 2 عمود ماركة برايت موديل ALPHA 40E - رافعة سيارات 4 طن وصلة سفلية

BRIGHT ALPHA 40E – 4 Ton Baseplate 2-Post Lift

Engineered for durability, safety, and workshop efficiency, the BRIGHT ALPHA 40E 2-post lift features a robust baseplate design and heavy-duty steel structure — ideal for professional vehicle maintenance and repair.

Key Highlights:

• Heavy-duty 5mm thick steel columns for enhanced structural strength.

• Reinforced 16mm bottom footplate ensures maximum stability.

• Carriage designed with 14mm thick steel plates, providing long-term durability.

• Strengthened lifting arms resist bending or deformation under load.

• Equipped with foot guardrails and height-limit Microswitch as standard for added safety.

• Precision gear locking system for secure lifting with high-strength fine teeth.

• Low-profile 28mm baseplate, offering easy access for service and cleaning.

• Fitted with 115mm steel rope pulley, minimizing wear and delivering smooth lift movement.

Technical Specifications:

• Lifting Capacity: 4,000 kg

• Lifting Time: 40 seconds

• Max Lifting Height: 1,900 mm

• Minimum Height: 98 mm

• Overall Height: 2,830 mm

• Post Distance: 2,800 mm

• Overall Width: 3,350 mm

• Motor Power: 2.2 kW

• Power Supply: 220V / 380V
